Ramsey TV6C Analog Television Transmitter Kit

0.00 avg. rating (0% score) - 0 votes

Six months after I purchased a TV6C analog television transmitter kit from eBay, I finally got the motivation to open the package and attempted the construction! Yes, the idea of having sort of a ‘real’ working television transmitter in my room was great, but the amount of time and efforts that will need to be spent has prevented me from trying the kit previously.

This is an all-in-one kit that provides you with everything from the PCB, capacitors, resistors and inductors to even the plastic box for the transmitter unit. Of particular note is the IF can-style RF transformer for the audio sub-carrier frequency (4.5MHz for NTSC-M in the US), which would have been very tricky to purchase.

This is the packaging for the kit:

ramsey package cover

Transmitter schematics

The circuit is a low-power TV transmitter with separate video and audio input, and a 2N3866 power amplifier stage to increase the transmission range:

This is the full circuit diagram:

Completed circuit board

A professional-looking PCB is already provided in the kit and except for a 220pF capacitor which has to be soldered underneath the board, the rest of the soldering is straightforward. This is the completed PCB after the soldering job:

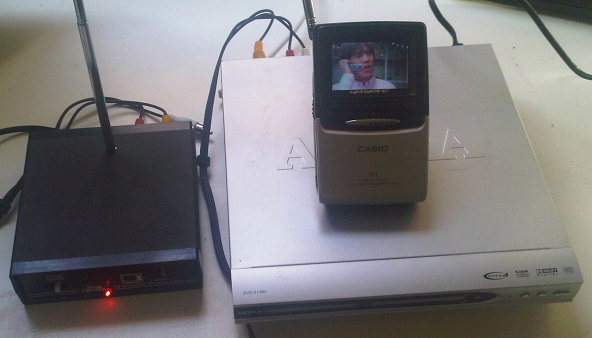

My transmitter worked upon first power on. The following picture shows the circuit transmitting on Channel 4 using the output from an AKIRA DVD Player, with the signal being received on a Casio EV-550B portable television:

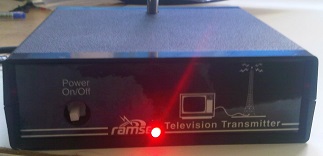

This is the front and the back side of the unit box. Note that the LED indicator was added by me and not part of the original kit:

Test results

During my testing the completed circuit works beautifully with clear pictures on my Casio portable television. The transmission range is approximately 100m with no obstacles in between. The only disadvantage of this unit is the 4.5MHz IF transformer designed for the NSTC-M TV system in the US. This means that you will still be able to feed in a PAL video signal with audio, but the receiving television may not be able to play the audio properly unless it’s a smart enough to detect the TV system and audio subcarrier frequency separately. In my case, with the AKIRA player setup to output NTSC and the Casio EV-550B supporting NTSC-M, the setup works just nice.

In order to transmit PAL, you will need to find an IF transformer having the audio sub-carrier frequency of the PAL system supported by your television (5.5MHz, 6.0MHz or 6.5MHz). I am planning to scrap an old PAL television, find the part and try again :)

Another minor disadvantage of the unit is the single mono audio RCA input while most players nowadays output stereo. To overcome this, you will need a stereo to mono converter circuit:

The full manual for the kit can be downloaded here for those who are interested.

0.00 avg. rating (0% score) - 0 votes


A tough developer who likes to work on just about anything, from software development to electronics, and share his knowledge with the rest of the world.

2 thoughts on “Ramsey TV6C Analog Television Transmitter Kit

  • October 9, 2023 at 4:45 am

    Good morning Sir!
    Would you be interested in selling it? I’m struggling to find one ’cause it’s the only good one I can find with a built in antenna capable of transmitting for a couple metres… but there are none for sale! You can contact me on my e-mail. Please let me know! Have a Nice day!!

  • ToughDev
    October 9, 2023 at 11:36 am

    Hi OverVolt,

    I no longer keep this board. The circuit is designed to be experimental and was never meant for long term usage. Mine stopped working after I had left it running for a couple of hours – one of the transistors became too hot and died (there was no heat sink installed). After that I threw the board away.

    However nowadays there are many similar VHF/UHF analog TV transmitters for sale on AliExpress. You can consider buying one to play with, keeping in mind local regulations.
